Wabo®SeismicWall Panel (SWP)

Applications

  • Exterior Wall Joint Systems
  • Interior Wall & Ceiling Joint Systems

Model Number: #SWP

Wabo®SeismicWallPanel is a unique expansion control system for interior and exterior walls designed to accommodate multi-directional movement. The system is easily installed and available for openings ranging from 4 inches to 24 inches and has been engineered to minimize damage and protect adjacent surfaces during seismic activity. Wabo®SeismicWallPanel primarily consists of a lightweight panel that is installed flush with adjacent surfaces resulting in a nearly invisible system. The panel has been designed to displace out and away from the primary system during seismic activity.

Add To Submittal
Master Specification

Features & Benefits

  • Easily installed with minimal light-weight components.
  • Accommodates multiple joint openings.
  • Protects building occupants and structure during earthquake activity with multi-directional movement capability.
  • Flush installation with adjacent surfaces.

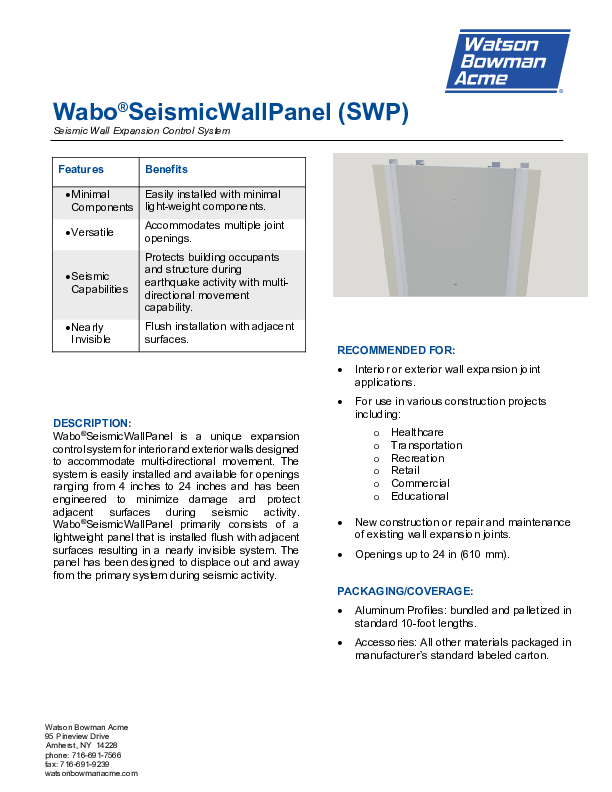

Wabo Seismic Wall Panel 0122 Data Sheet Cover

Wabo Seismic Wall Panel 0122 Data Sheet

Download

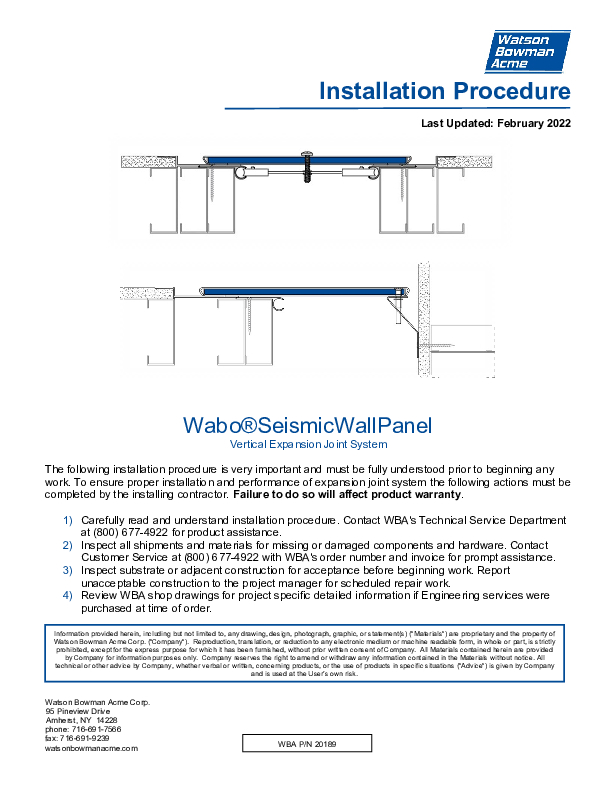

Wabo®SeismicWallPanel US English Cover

Wabo®SeismicWallPanel US English

Download
Wabo®SeismicWallPanel (SWP-600) Thumbnail

Wabo®SeismicWallPanel (SWP-600)

Download
Wabo®SeismicWallPanel (SWP-400C) Thumbnail

Wabo®SeismicWallPanel (SWP-400C)

Download

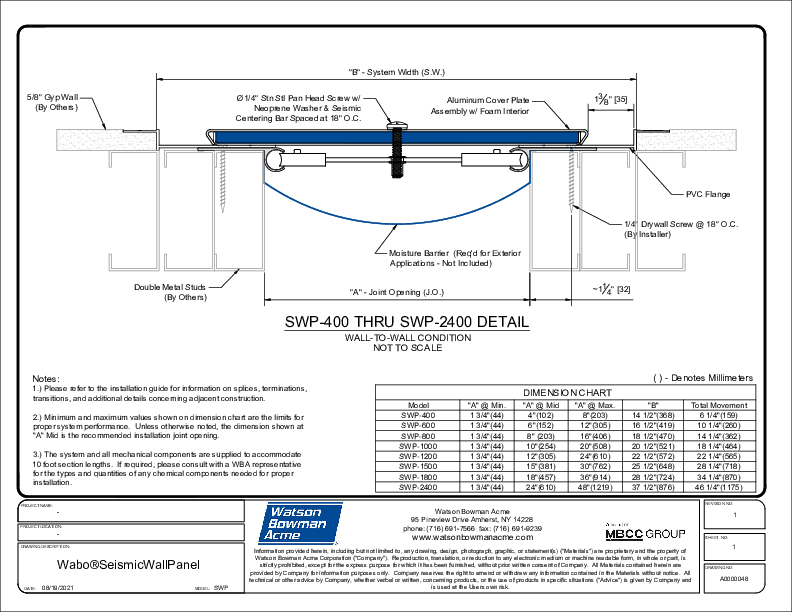

Wabo®SeismicWallPanel (SWP-400-2400) CAD Detail Thumbnail

Wabo®SeismicWallPanel (SWP-400-2400) CAD Detail

Download

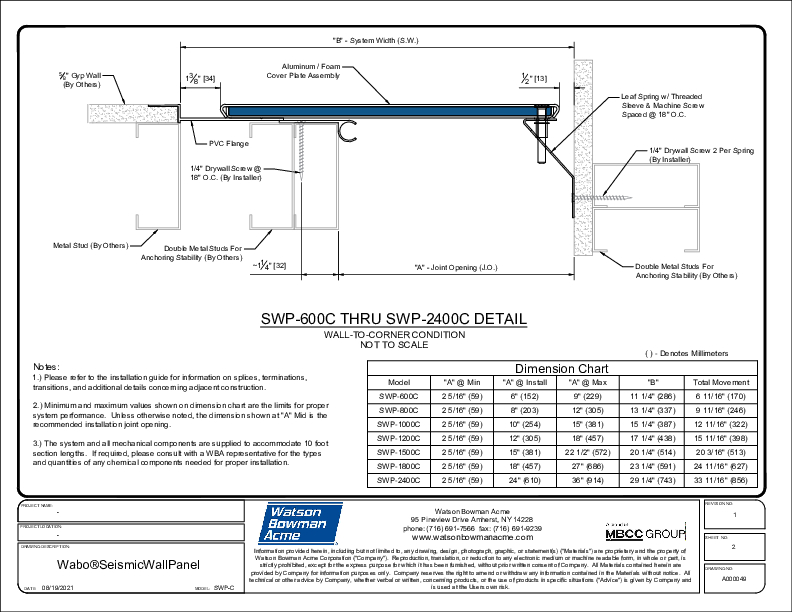

Wabo®SeismicWall Panel SWP 600C 2400C Detail Cover

Wabo®SeismicWall Panel SWP 600C 2400C Detail

Download

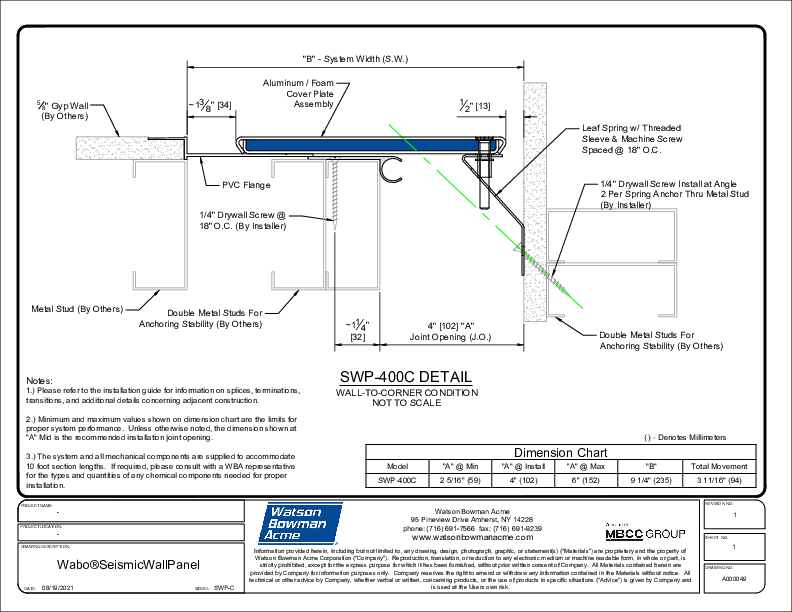

Wabo®SeismicWall Panel SWP 400C Detail Cover

Wabo®SeismicWall Panel SWP 400C Detail

Download
Wabo®SeismicWall Panel SWP 400-2400 Detail Cover

Wabo®SeismicWall Panel SWP 400-2400 Detail

Download

Product Lines

Wabo®QuakeWall (QWE)
Product Line

Wabo®QuakeWall (QWE)

Wabo®QuakeWall is a high-performance lightweight aluminum exterior/interior wall expansion system joint capable of accommodating large multi-directional thermal/seismic forces and displacements.

Read More
Wabo®SeismicCover Exterior WFE600 Brick
Product Line

Wabo®SeismicCover Exterior (WFE, WFX)

Wabo®SeismicCover (WFE, WFX) is an exterior wall system designed to accommodate both thermal and multi-directional movement. The system provides a simple,…

Read More
Wabo®SeismicCover Interior (WFT) - Seismic Joint Systems - WFI600
Product Line

Wabo®SeismicCover Interior (WFI, WFT)

Wabo®SeismicCover (WFI, WFT) is a wall and ceiling system designed to accommodate both thermal and multi-directional movement. The system provides a simple,…

Read More
