Wabo®FireShield (FSH) - Horizontal

Applications

  • Fire Barrier Systems

Model Number: #FSH

Available in 2 or 3 Hour Ratings

Wabo®FireShield FSH is watertight, fire-rated, dual-sided and a primary seal for repair, retrofit, and new installation in structural building expansion joints and construction joints in horizontal plane applications.

Add To Submittal

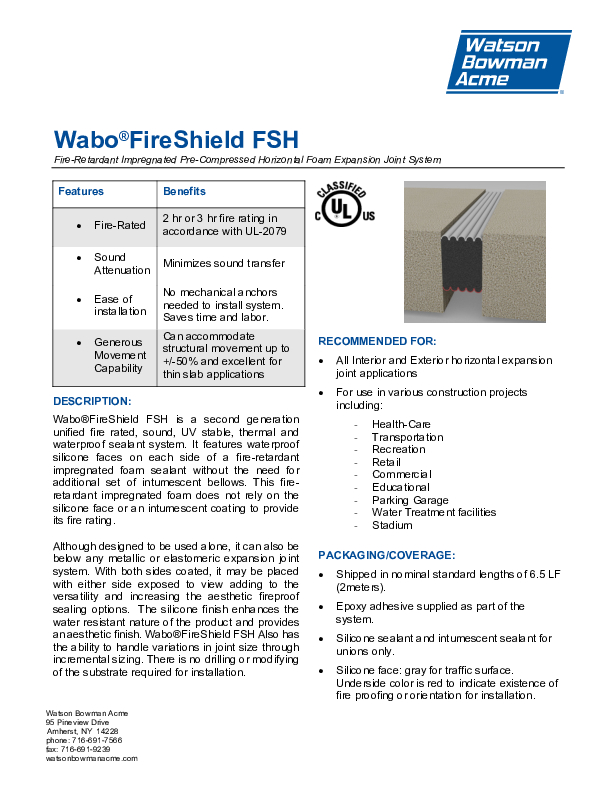

Spec Sheet

Features & Benefits

  • Fire ratings: 2 or 3 hr fire rating in accordance with UL-2079.
  • Listed with UL 2079 for concrete, masonry, and gypsum walls.
  • Sound Attenuation: minimizes sound transfer and features Sound Transmission Class (STC)/ Outdoor/Indoor Transmission Class (OITC) sound transmission coefficients that can meet or exceed that of the assembly into which they are installed.
  • Easily handles changes in plane and direction.
  • Silicone ribs and field-applied sealant band ensures a watertight application.
  • Accommodate structural movement up to +/-50%.

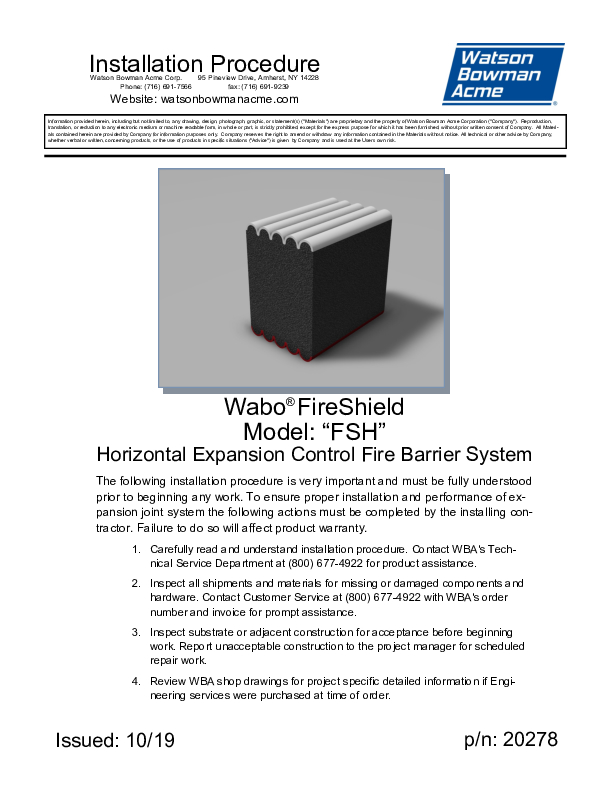

Wabo®FireShield Horizontal (FSH) Installation Procedure Cover

Wabo®FireShield Horizontal (FSH) Installation Procedure

Installation procedures for Wabo®FireShield (FSH) (.pdf)

Download

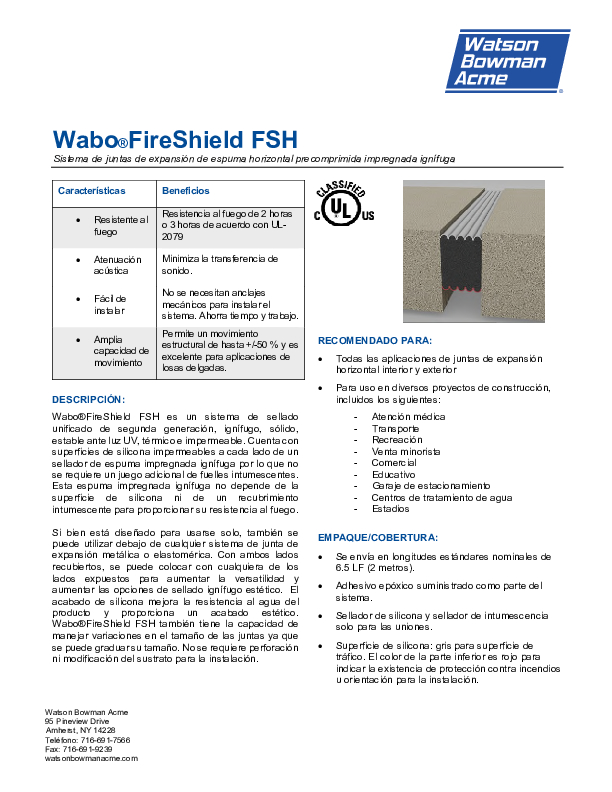

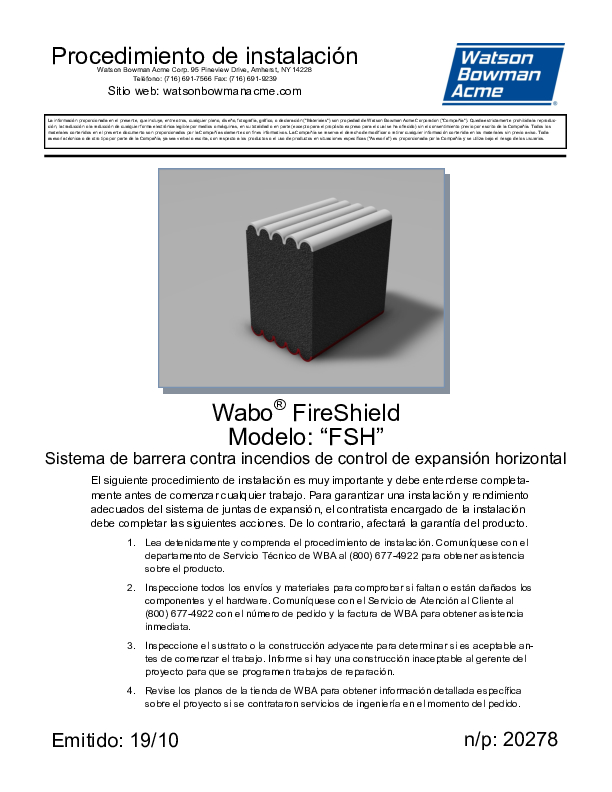

Wabo®FireShield FSH Install Spanish Cover

Wabo®FireShield FSH Install Spanish

Wabo Fire Shield FSH Install- Spanish (PDF)

Download

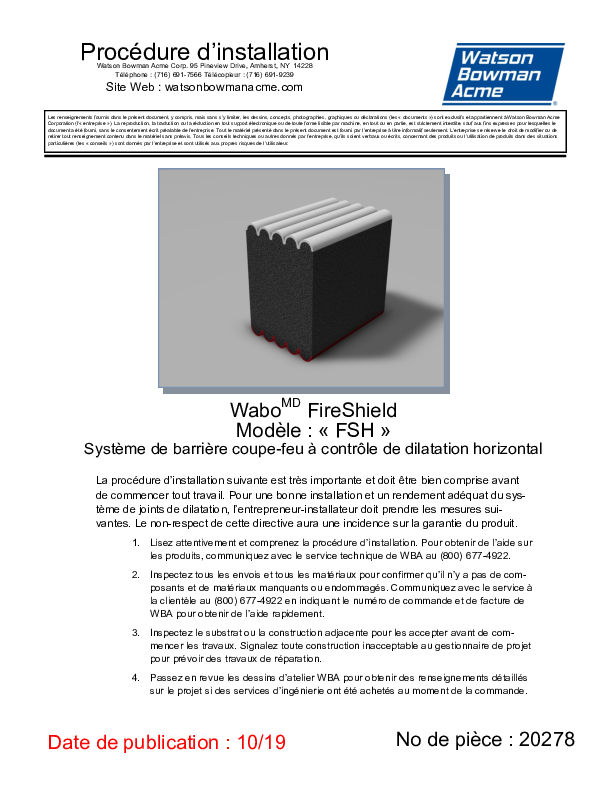

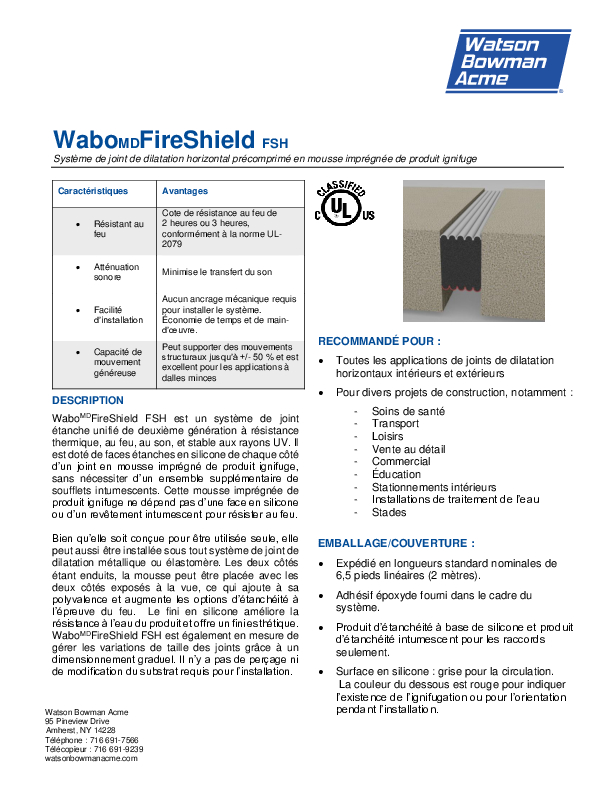

Wabo®FireShield FSH Install- French Cover

Wabo®FireShield FSH Install- French

Wabo Fire Shield FSH Install- French (PDF)

Download

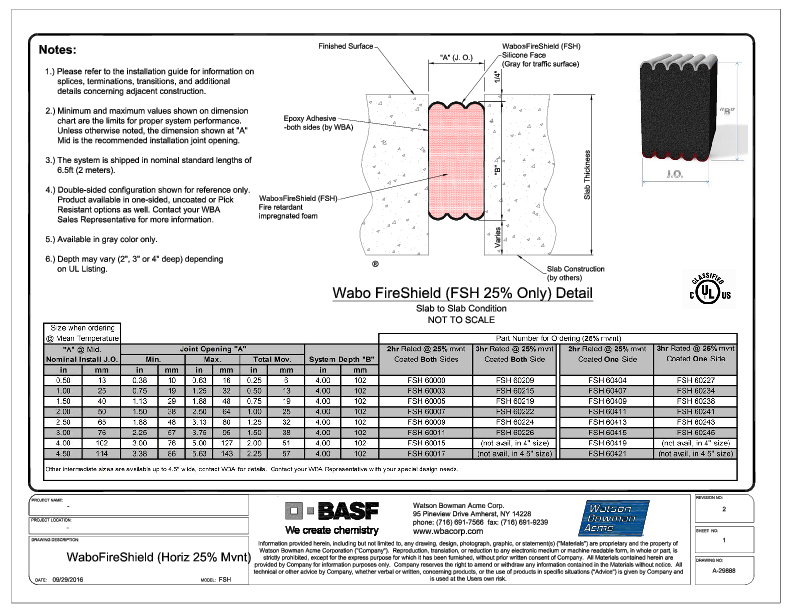

Wabo®FireShield (FSH) Horizontal CAD Detail (25% Mvnt) Thumbnail

Wabo®FireShield (FSH) Horizontal CAD Detail (25% Mvnt)

Slab to slab detail for Wabo®FireShield FSH 25% movement 2 & 3 hour rating (.dwg)

Download
Wabo®FireShield (FSH-Horizontal) CAD Detail (25% Mvnt) Cover

Wabo®FireShield (FSH-Horizontal) CAD Detail (25% Mvnt)

Slab to slab detail for Wabo®FireShield FSH 25% movement 2 & 3 hour rating (.pdf)

Download

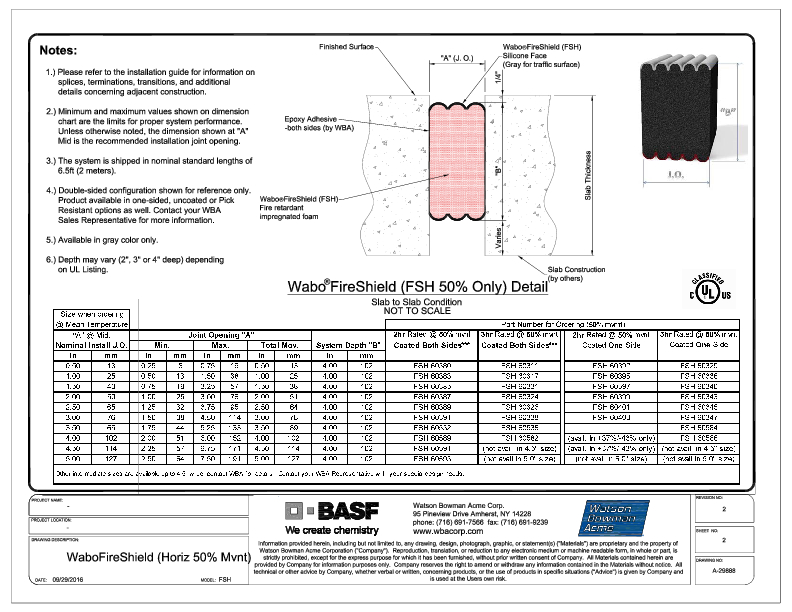

Wabo®FireShield (FSH) Horizontal CAD Detail (50% Mvnt) Thumbnail

Wabo®FireShield (FSH) Horizontal CAD Detail (50% Mvnt)

Slab to slab detail for Wabo®FireShield FSH 50% movement 2 & 3 hour rating (.dwg)

Download
Wabo®FireShield (FSH-Horizontal) CAD Detail (50% Mvnt) Cover

Wabo®FireShield (FSH-Horizontal) CAD Detail (50% Mvnt)

Slab to slab detail for Wabo®FireShield FSH 50% movement 2 & 3 hour rating (.pdf)

Download

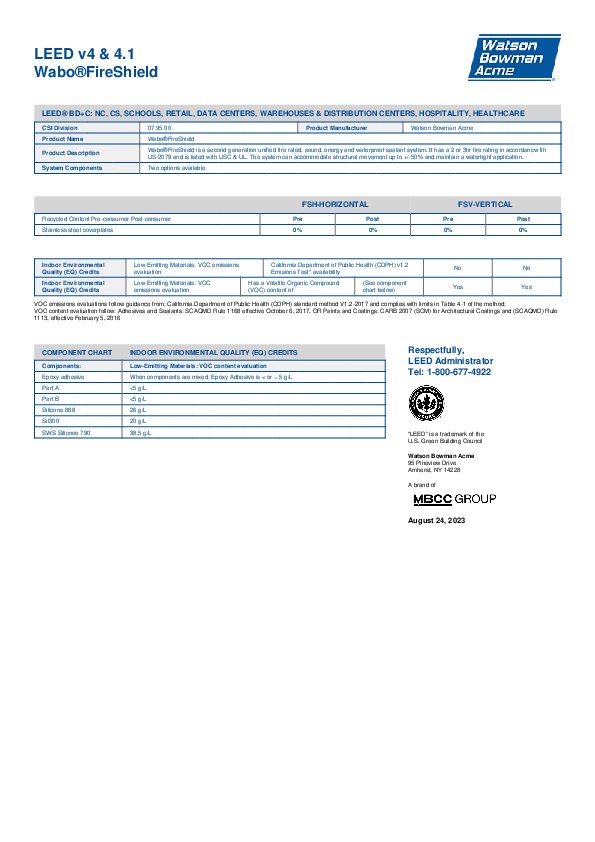

Wabo Fire Shield 2 Cover

Wabo Fire Shield 2
